4M Modulbox XTS Compact

DIN Rail (EN 60715) mounting enclosures for electronic products according to DIN 43880.



FEATURES

This modular enclosure can be fastened to DIN (EN 60715) rail and can be provided with several terminal covers. There are several versions of this modular enclosure: Type A (similar to the previous Modulbox product and bearing the same compatibility with the pcbs), type B ( with one side higher to leave more space for larger electronic components) and type C (with both sides higher to have more space for the electronic components).



Version A

H53-A maintains the possibility to assemble the panels and terminal covers. Its sides, next to the assembling area of the terminal blocks, are high. As well as the above, it is possible to have special versions upon request for a relatively low order quantity.

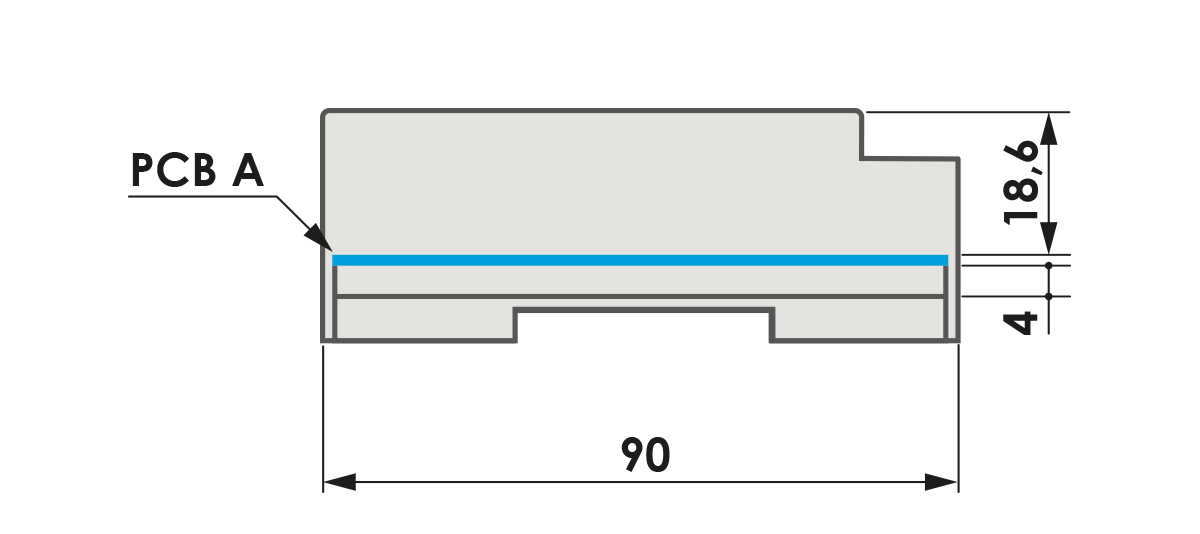

Version B

This type has one side higher to allow electronic components of bigger volume. H53-B maintains the possibility to assemble panels and terminal covers on one side only of the enclosure. Its side, next to the assembling area of the terminal blocks, is high. It is possible to have special versions upon requests for a relatively low order quantity.

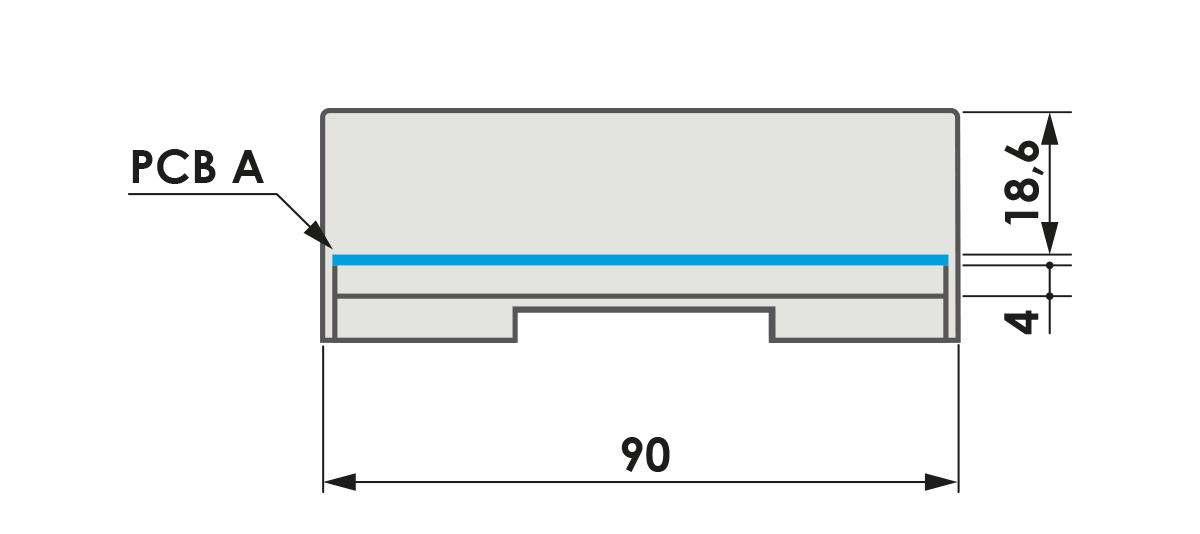

Version C

This type allows the maximum space for the electronic components. 53-C type can be produced as the closed version upon request for a relatively low quantity.
