6M XTS Modulbox XTS

DIN rail (EN60715) mounting enclosures for electronic products according to DIN 43880

Features

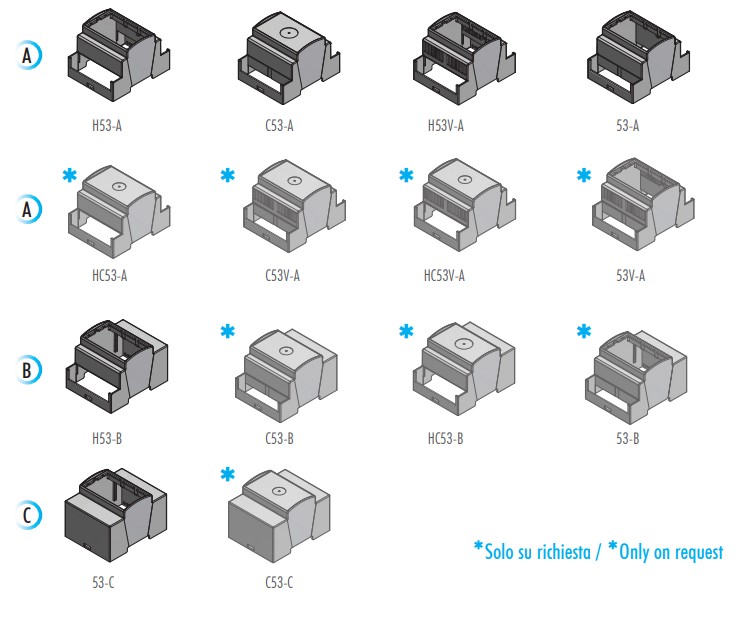

This modular enclosure can be fastened to DIN (EN 60715) rail and can be provided with several terminal covers and various front panels. There are several versions of this modular enclosure: Type A (similar to the previous Modulbox product and bearing the same compatibility with the pcbs), type B ( with one side higher to leave more space for larger electronic components) and type C (with both sides higher to have more space for the electronic components).

Technical specs

Material  Blend PC/ABS self-extinguishing
Colour  Grey RAL 7035


Through the development of inserts for the mould tool, the Modulbox XTS series can be customised according to Customers’ specific requirements at extremely affordable costs.





6MXTSA

It is compatible with the previous version. The enclosure has been designed to allow the snap-in insertion of three different pcbs (CSA, CSB and CSC) and for the mounting of terminal covers on both sides. There are different standard versions of type A: 53: version 53 maintains the possibility to assemble the panels and terminal covers. Its sides, next to the assembling area of the terminal blocks, are closed down to the base (upon request). H53: version H53 maintains the possibility to assemble the panels and terminal covers. Its sides, next to the assembling area of the terminal blocks, are high. H53V: version H53V is different from version H53 as it has ventilation slots on its sides. C53: version C53 is similar to version 53 although its upper panel is integrated on the enclosure. Panels may be mounted on it. Its sides, next to the assembling area of the terminal blocks, are closed down to the base (upon request). As well as the above, it is possible to have special versions upon request for a relatively low order quantity.

6MXTSB

This type has one side higher to allow electronic components of bigger volume. It has been designed to allow the snap-in lock assembling of three different printed circuit boards (CSA, CSB e CSC). H53: the standard version of type B is H53. This version maintains the possibility to assemble panels and terminal covers on one side only of the enclosure. Its side, next to the assembling area of the terminal blocks, is high. It is possible to have special versions upon requests for a relatively low order quantity.

6MXTSC

This type allows the maximum space for the electronic components. H53 has been designed to allow the snap-in lock assembling of three printed circuit boards (CSA, CSB and CSC), two of which have large dimensions. This type can be produced as the closed version upon request for a relatively low quantity.


Description

1) Body Enclosure

2) Base

3) Hook

4) Terminal cover*

5) Panel*

* Accessories



Login or register to see the complete catalogue with prices.

Select a complete enclosure from the table to display compatible accessories

Complete enclosure

CodeTypeDescription
25.0601000.BL
Order
H53-AKIT ENCLOSURE MODULBOX XTS 6MH53-ADrawing 3D Drawing
25.0602000.BL
Order
H53V-AKIT ENCLOSURE MODULBOX XTS WITH VENTS 6MH53V-ADrawing 3D Drawing
25.0603000.BL
Order
C53-AKIT ENCLOSURE MODULBOX XTS 6MC53-A^Drawing Samples 3D Drawing
25.0604000.BL
Order
53-AKIT ENCLOSURE MODULBOX XTS 6M53-ADrawing 3D Drawing
25.0606000.BL
Order
H53-BKIT ENCLOSURE MODULBOX XTS 6MH53-BDrawing 3D Drawing
25.0610000.BL
Order
53-CKIT ENCLOSURE MODULBOX XTS 6M53-CDrawing 3D Drawing

Accessories - Panels

CodeTypeColourDescription
P05060201F.BL
Order
53 / H53 / H53VGrayPANEL MODULBOX WITHOUT FRAME 6MDrawing 3D Drawing
P05060201P.BL
Order
53 / H53 / H53VGrayPANEL MODULBOX WITH FRAME 6MDrawing 3D Drawing
P05060721F
Order
53 / H53 / H68 / H53VTransparentPANEL MODULBOX WITHOUT FRAME 6M TRANSPARENTDrawing 3D Drawing
P05060721P
Order
53 / H53 / H68 / H53VTransparentPANEL MODULBOX WITH FRAME 6M TRANSPARENTDrawing Samples 3D Drawing
P05060821F
Order
53 / H53 / H68 / H53VTransparent redPANEL MODULBOX WITHOUT FRAME 6M TRANSPARENT REDDrawing Samples 3D Drawing
P05060821P
Order
53 / H53 / H68 / H53VTransparent redPANEL MODULBOX WITH FRAME 6M TRANSPARENT REDDrawing Samples 3D Drawing

Accessories - Curved panels

CodeTypeColourDescription
P05060201C.BL
Order
53 / H53 / H53VGrayPANEL MODULBOX XT-XTS CURVED 6MDrawing Samples 3D Drawing
P05060721C
Order
53 / H53 / H53VTransparentPANEL MODULBOX XT-XTS CURVED 6M TRANSPARENTDrawing Samples 3D Drawing
P05060821C
Order
53 / H53 / H53VTransparent redPANEL MODULBOX XT-XTS CURVED 6M TRANSPARENT REDDrawing Samples 3D Drawing

Accessories - Terminal covers without holes

CodeTypeDescription
P05030206T.BL
Order
A / BTERMINAL COVER MODULBOX WITHOUT HOLES 3MPNDrawing 3D Drawing
P05030706T
Order
A / BTERMINAL COVER MODULBOX WITHOUT HOLES 3MPN TRANSPARENTDrawing Samples 3D Drawing

Accessories - Pre marked terminal covers

CodeTypePolesDescription
P05030203T.BL
Order
A / B9TERMINAL COVER MODULBOX PRE-MARKED3MP05P PITCH 5,08 9 POLESDrawing Samples 3D Drawing

Accessories - Pre holed terminal covers

CodeTypePolesDescription
P05030201T.BL
Order
A / B9TERMINAL COVER MODULBOX PRE-HOLED 3MP05 PITCH 5,08 9 POLESDrawing Samples 3D Drawing
P05030202T.BL
Order
A / B5TERMINAL COVER MODULBOX PRE-HOLED 3MP10 PITCH 10,16 5 POLESDrawing Samples 3D Drawing
P05030204T.BL
Order
A / B6TERMINAL COVER MODULBOX PRE-HOLED 3MP7,5 PICH 7,65 6 POLESDrawing Samples 3D Drawing
P05030208T.BL
Order
A / B4TERMINAL COVER MODULBOX PRE-HOLED 3MP10C PITCH 10,16 4 POLESDrawing Samples 3D Drawing

Accessories - Pre holed terminal covers 25A

CodeTypePolesDescription
P05030210T.BL
Order
A / B7TERMINAL COVER MODULBOX PRE-HOLED 3MP6,35I PITCH 6,35 7 POLESDrawing Samples 3D Drawing
P05030211T.BL
Order
A / B4/6TERMINAL COVER MODULBOX PRE-HOLED 3MP6,35R - 3MP9,52Drawing Samples 3D Drawing

Accessories - Terminal covers for plug in connectors

CodeTypeDescription
P05030213T.BL
Order
A / BTERMINAL COVER MODULBOX PLUG-IN 3MDrawing Samples 3D Drawing
P05030284T.BL
Order
A / BTERMINAL COVER MODULBOX PLUG-IN LOWPROFILE 3MDrawing Samples 3D Drawing

Accessories - Special terminal covers

CodeTypePolesDescription
P05030251T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM051Drawing Samples 3D Drawing
P05030252T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM052Drawing Samples 3D Drawing
P05030253T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM053Drawing Samples 3D Drawing
P05030254T.BL
Order
A / B2+2TERMINAL COVER MODULBOX 3M-CM054 2+2 POLIDrawing Samples 3D Drawing
P05030255T.BL
Order
A / B2TERMINAL COVER MODULBOX 3M-CM055 2POLESDrawing Samples 3D Drawing
P05030256T.BL
Order
A / B2TERMINAL COVER MODULBOX 3M-CM056 2POLESDrawing Samples 3D Drawing
P05030257T.BL
Order
A / B4TERMINAL COVER MODULBOX 3M-CM057 4POLESDrawing Samples 3D Drawing
P05030258T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM058Drawing 3D Drawing
P05030259T.BL
Order
A / B4+1TERMINAL COVER MODULBOX 3M-CM059 4+1 POLESDrawing Samples 3D Drawing
P05030260T.BL
Order
A / B4+2TERMINAL COVER MODULBOX 3M-CM060 4+2 POLESDrawing Samples 3D Drawing
P05030261T.BL
Order
A / B8TERMINAL COVER MODULBOX 3M-CM061 8POLESDrawing Samples 3D Drawing
P05030262T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM062Drawing 3D Drawing
P05030263T.BL
Order
A / B4TERMINAL COVER MODULBOX 3M-CM063 4POLESDrawing Samples 3D Drawing
P05030264T.BL
Order
A / B4TERMINAL COVER MODULBOX 3M-CM064 4POLESDrawing Samples 3D Drawing
P05030265T.BL
Order
A / B2TERMINAL COVER MODULBOX 3M-CM065 2POLESDrawing Samples 3D Drawing
P05030266T.BL
Order
A / B2+2TERMINAL COVER MODULBOX 3M-CM066 2+2 POLESDrawing 3D Drawing
P05030267T.BL
Order
A / B2+3TERMINAL COVER MODULBOX 3M-CM067 2+3 POLESDrawing 3D Drawing
P05030268T.BL
Order
A / B2+2TERMINAL COVER MODULBOX 3M-CM068 2+2 POLESDrawing 3D Drawing
P05030269T.BL
Order
A / B2TERMINAL COVER MODULBOX 3M-CM069 2POLESDrawing Samples 3D Drawing
P05030270T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM070Drawing Samples 3D Drawing
P05030273T.BL
Order
A / B8TERMINAL COVER MODULBOX 3M-CM073 8POLESDrawing 3D Drawing
P05030274T.BL
Order
A / B3+2TERMINAL COVER MODULBOX 3M-CM074 3+2 POLES^Drawing Samples 3D Drawing
P05030236T.BL
Order
A / B3M PNP SPECIAL TERMINAL BLOCK COVER WITHOUT HOLE WITH FLAPSDrawing Samples 3D Drawing
P05030271T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM071Drawing Samples 3D Drawing
P05030272T.BL
Order
A / B4+3TERMINAL COVER MODULBOX 3M-CM072 4+3 POLESDrawing 3D Drawing
P05030275T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM075Drawing Samples 3D Drawing
P05030277T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM077Drawing 3D Drawing
P05030278T.BL
Order
A / BTERMINAL COVER MODULBOX 3M-CM078Drawing Samples 3D Drawing
P05030280T.BL
Order
A / B3+4TERMINAL COVER MODULBOX 3M-CM080 3+4 POLESDrawing 3D Drawing
P05030281T.BL
Order
A / B4+4TERMINAL COVER MODULBOX 3M-CM081 4+4 POLESDrawing 3D Drawing

Accessories EIB

CodeTypeDescription
P05000008E
Order
EIB UNIVERSAL ACCESSORYDrawing Samples 3D Drawing
P05030215T.BL
Order
A / BKIT TERMINAL COVER 3M-EIB X 1 EIB BUS CONNECTORDrawing Samples 3D Drawing
P05030216T.BL
Order
A / BKIT TERMINAL COVER 3M-EIB X 2 EIB BUS CONNECTORSDrawing 3D Drawing

Accessories

CodeColourDescription
P35060000D.BL
Order
GraySPACER MODULBOX XTS 6MDrawing Samples 3D Drawing

Energy meters MID

CodeColourDescription
P15060007E
Order
TransparentWIRE COVER IN ACCORDING MID STANDARD 6MDrawing Samples 3D Drawing
P15060008E
Order
GrayACCESSORY FOR SEALING IN ACCORDINGMID STANDARDDrawing Samples 3D Drawing

Copriforo

CodeColourDescription
P15030201E.BL
Order
GrayHOLE COVER 3MH SERIES XT/XTS BLENDGREYDrawing Samples 3D Drawing

Accessories - Top Bus XTS

CodeDescription
22.P750020
Order
TOP BUS CONNECTORPNOZ S CONNECTOR - 750020Drawing Samples 3D Drawing
M251000270
Order
MACHINING ENCLOSURES LEFT + RIGHTADAPTATION FOR TOP BUS XTSDrawing 3D Drawing
M251000271
Order
MACHINING PANEL LEFT + RIGHT ADAPTATION FOR TOP BUS XTSDrawing Samples 3D Drawing
22.1007FS2
Order
PIN STRIP VERTICAL FOR TOP BUS DW-10-07-F-S-200Drawing Samples 3D Drawing
