Latusbox

Modular system for FIELD BUS, DIN Rail mounting (EN 60715)



FEATURES

LATUSBOX is an innovative and versatile solution, designed for all  DIN rail and wall mounting applications which require the use of a common motherboard and the connection of additional boards, like a FIELD BUS structure. The primary aim of LATUSBOX is to offer maximum flexibility and customization, allowing users to adapt the system to their specific needs.

LATUSBOX description

The LATUSBOX system is composed of modular components that can easily be combined to fit the different needs of applications.

Its more prominent feature is versatility, with two models of enclosures, according to the required width. Moreover, the enclosures can be aesthetically customized through digital print or laser print either on the semi-transparent front panel or on the enclosure itself.

The enclosures are designed to allow the use of connectors on the bottom part and thus the connection to the motherboard - thanks to the modular seat; in the bigger version, it is also possible to use plug-in terminals on the front area.

The modular seat, to be fixed on the printed circuit board, allows the insertion and management of 8 enclosures with a width of 9.8mm or 4 enclosures with a width of 19.8mm.

The levers to be applied to the modular seat are used to block the enclosures in the position, connected or disconnected to the motherboard and to ease the removal of the enclosure. The modular seats can be placed side by side, therefore without any limitation of enclosures to be accommodated.

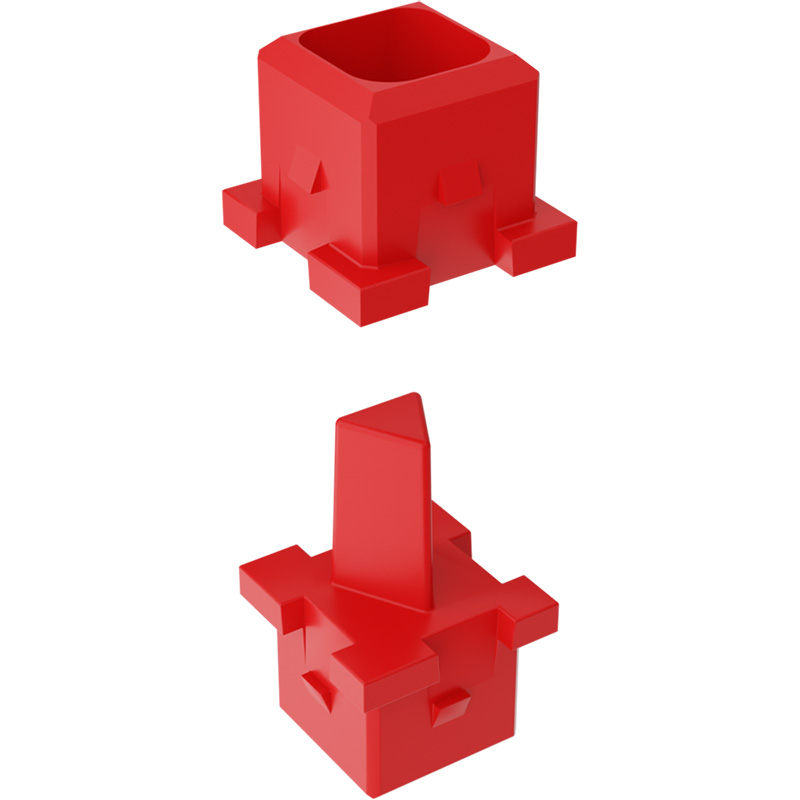

Thanks to the polarizers to be fixed on the enclosure and on the modular seat, each enclosure can be positioned only where polarization allows it. This ensures a mechanical lock that prevents electrical connection in wrong positions.

How to compose the LATUSBOX system:

Ordering your LATUSBOX is simple and intuitive, see the following passages:

Step 1 - Selection A-Kit Enclosure

Choose between:

  • Closed or open cover (3)
  • Base (2), also closed or open, for the 9.8mm version

or

  • Base (4) for the 19.8mm version
  • Front door (1)
  • Eventual polarizers (5)

Step 2 – Selection B - Kit Enclosure Seat

  • Modular seat (5) for fixing 8-position enclosures for the 9.8mm version or 4 for the wider 19.8mm version.
  • 1 lever (6) for each 9.8mm wide enclosure.
  • 2 levers (6) plus 1 accessory (7) for each 19.8mm wide enclosure

Step 3 – Selection C of the profile from the following link SUPPORT

  • SUPPORT profile (9) of series E107, according to the desired length
  • Couple of lateral closures (10)
  • 3 screws for each closure (11)

Technical specifications

Material PA66, PA6+25GF
Class UL94 V0, HB
Colour Black (9005)
Operating temperature  -40°C + 120°C (depending on dissipated power)




Login or register to view the price list and other dedicated services.

A - Kit Enclosure


P17100721P

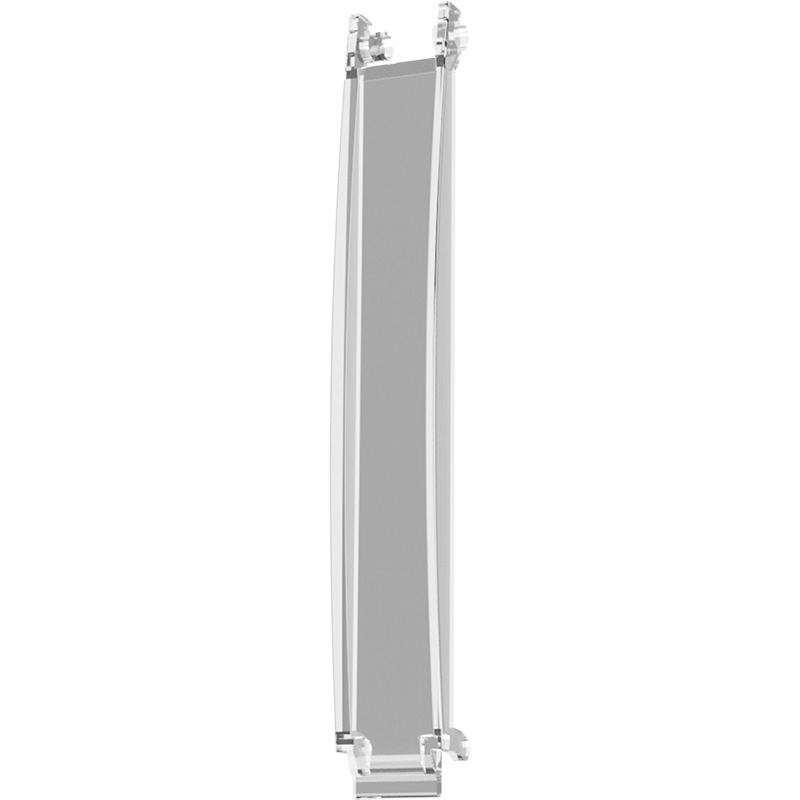

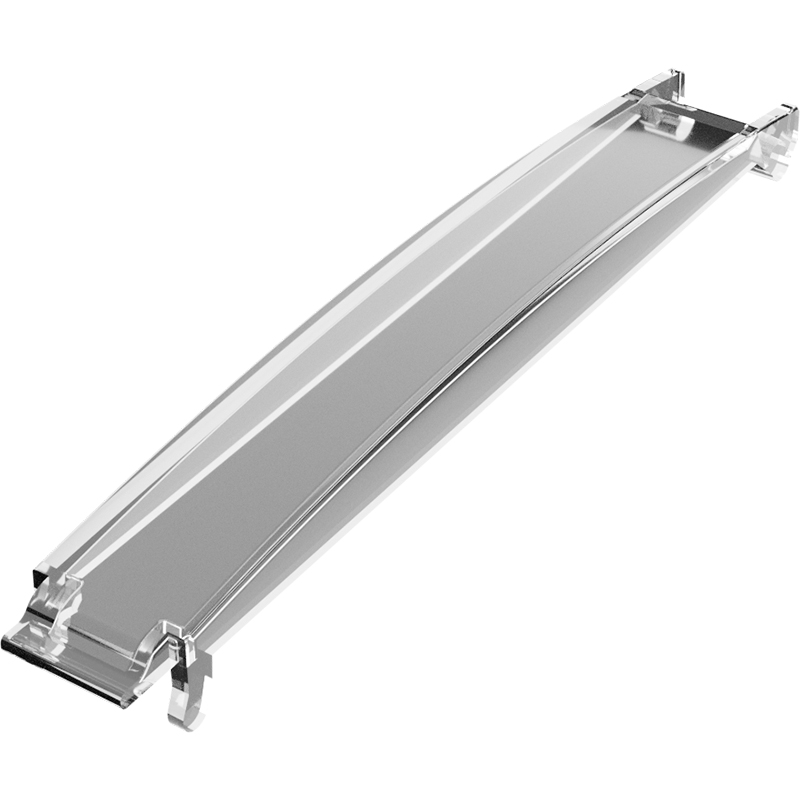

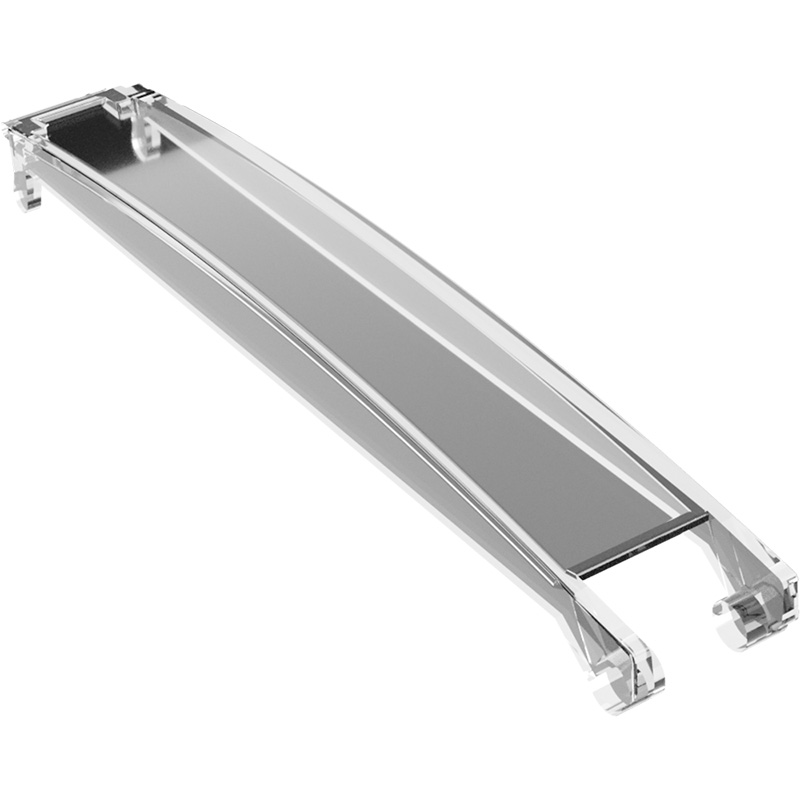

FRONT DOOR LATUSBOX 9,8MM TRANSPARENT
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models
P17111111B

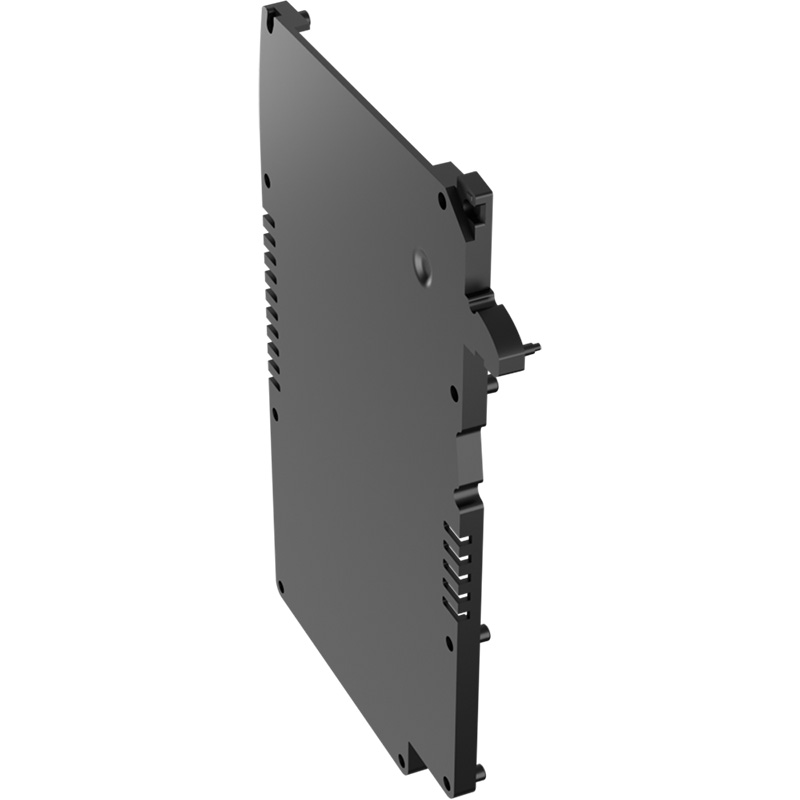

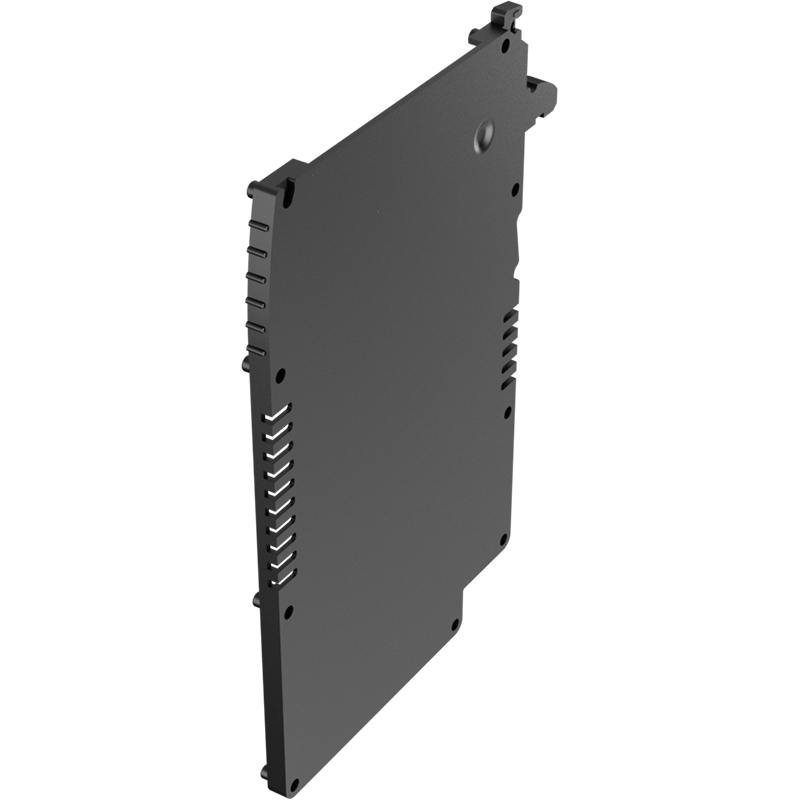

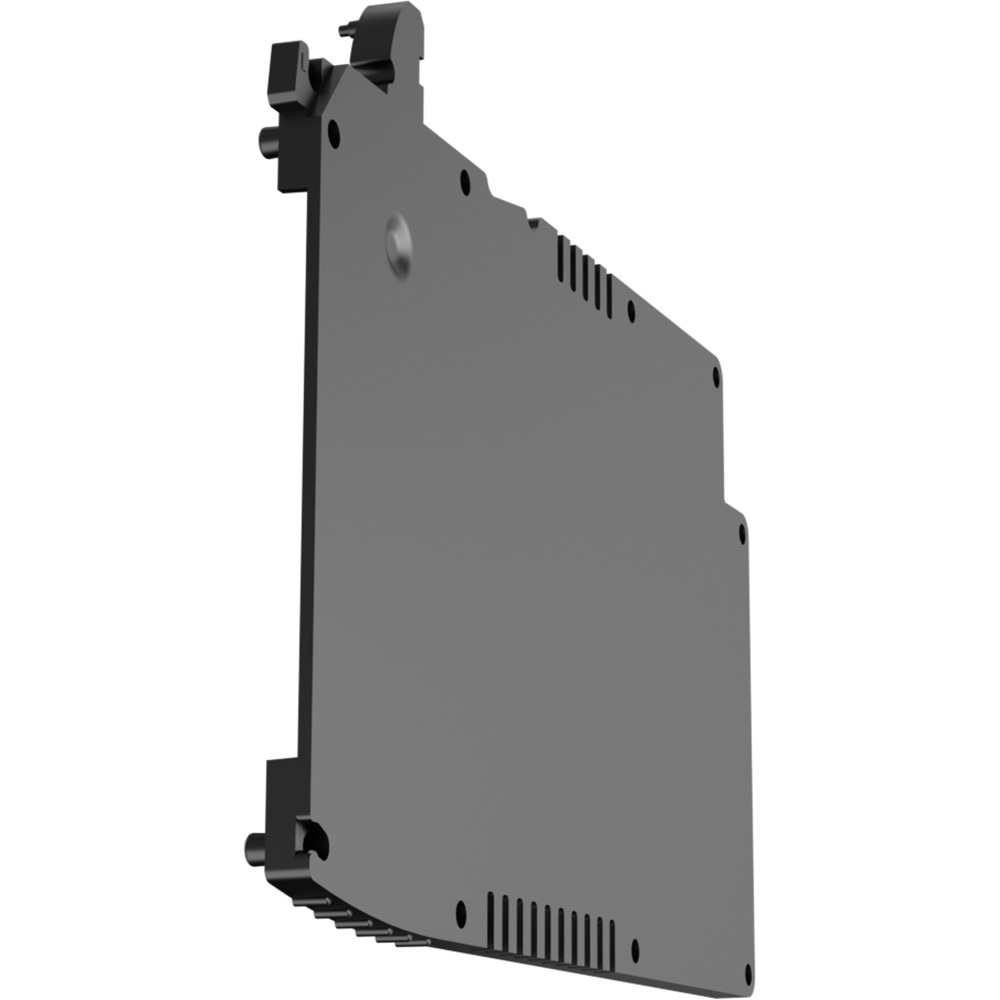

BASE LATUSBOX 9.8 MM OPEN BLACK
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models
P17111111C

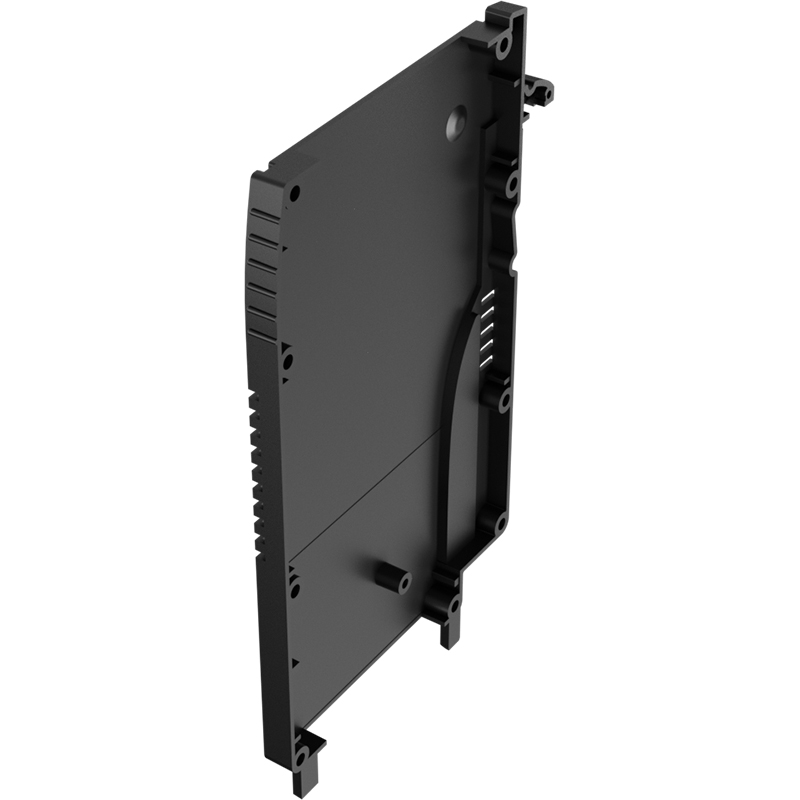

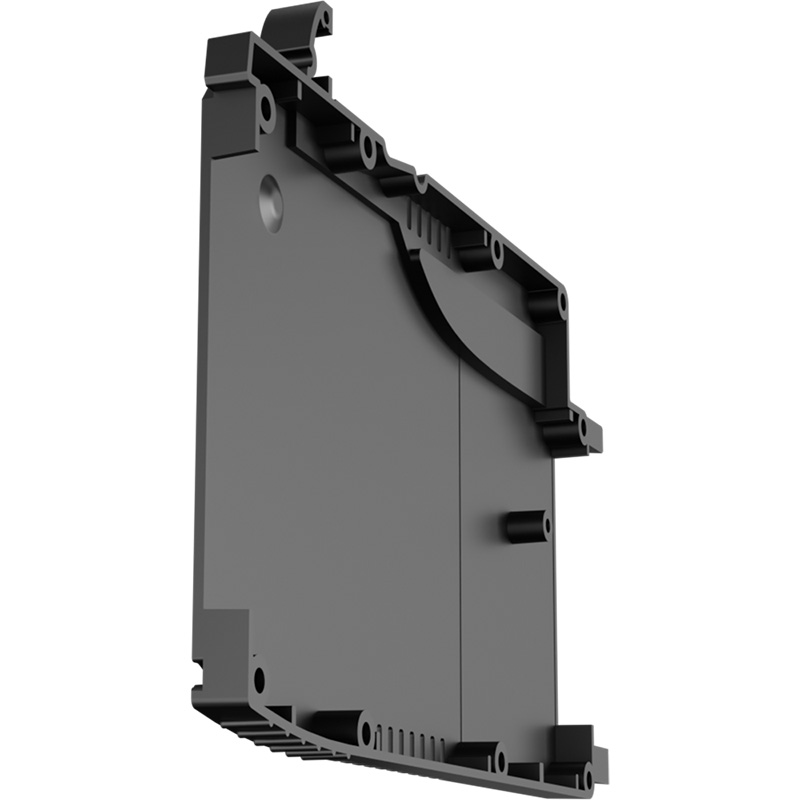

COVER LATUSBOX 9.8 MM OPEN BLACK
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models
P17211111B

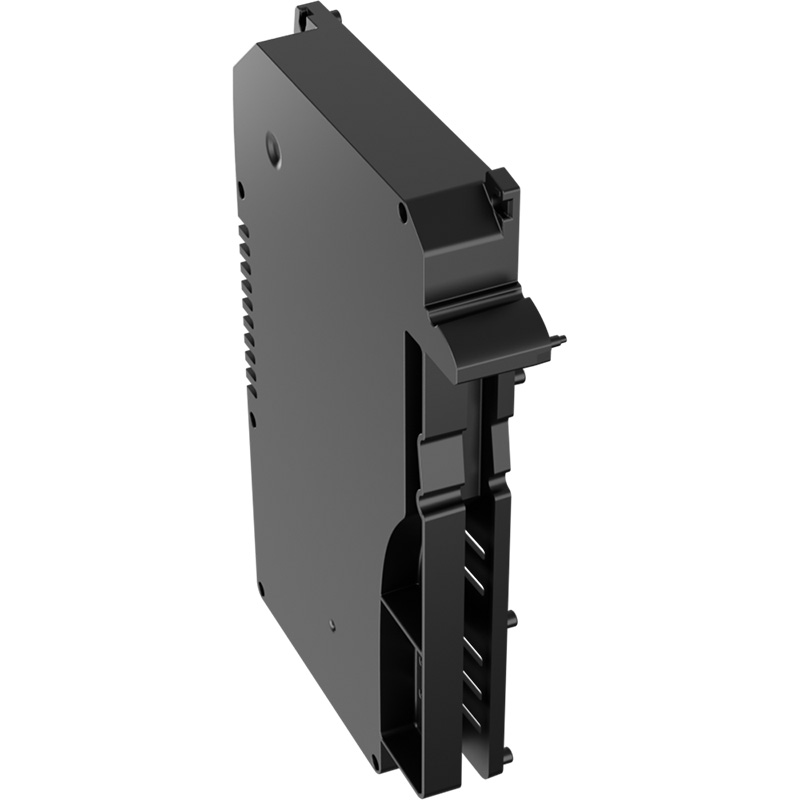

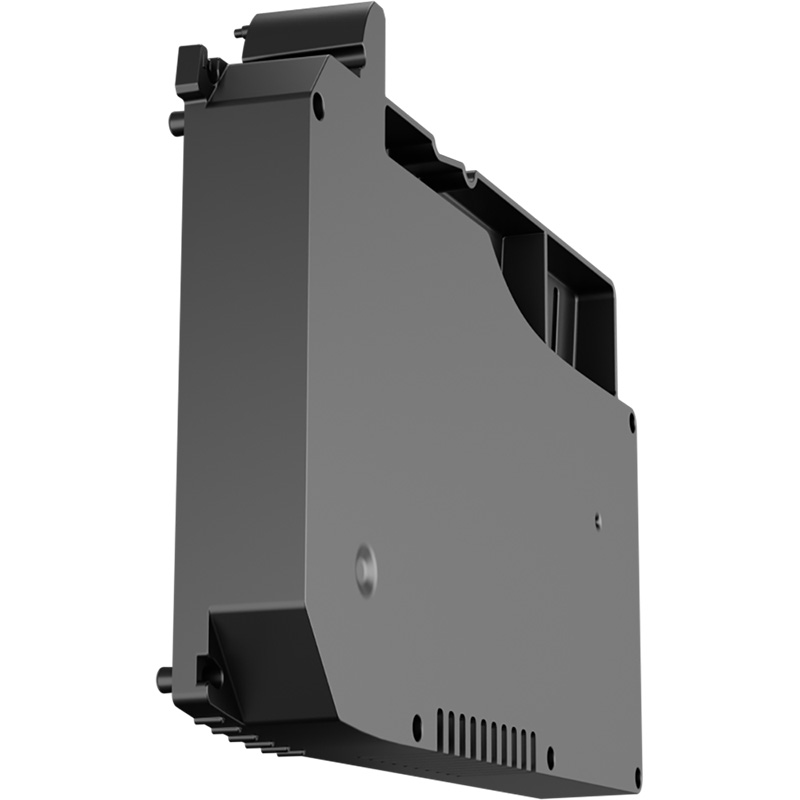

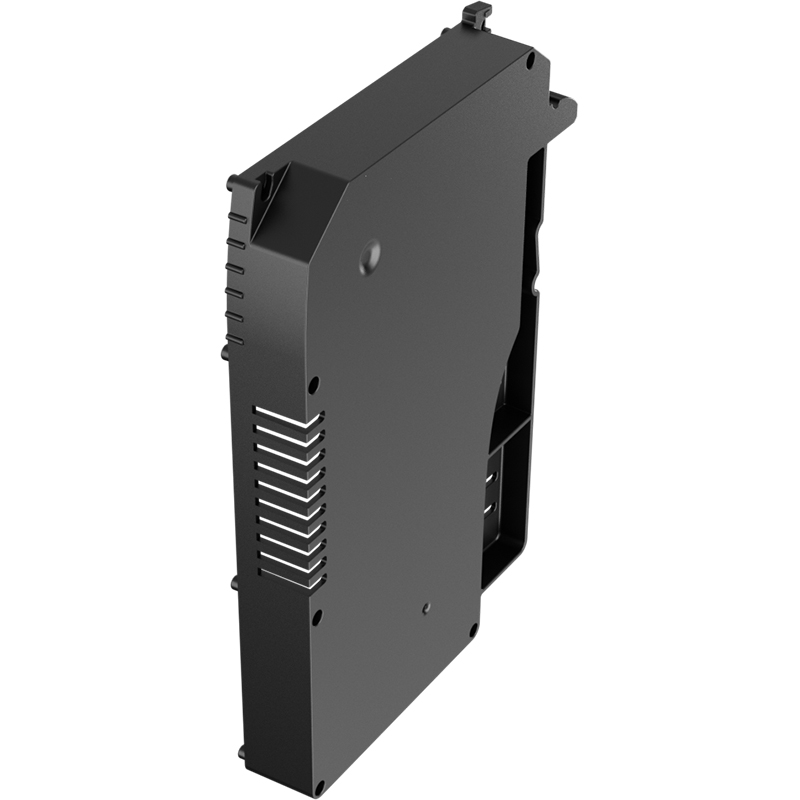

BASE LATUSBOX 13,9 MM CLOSED BLACK
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models

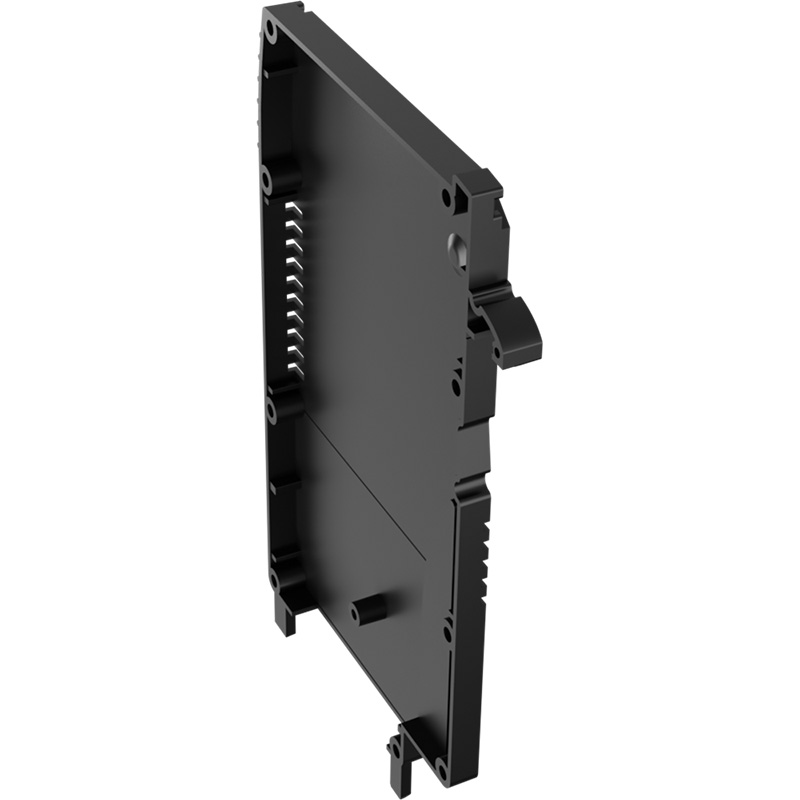

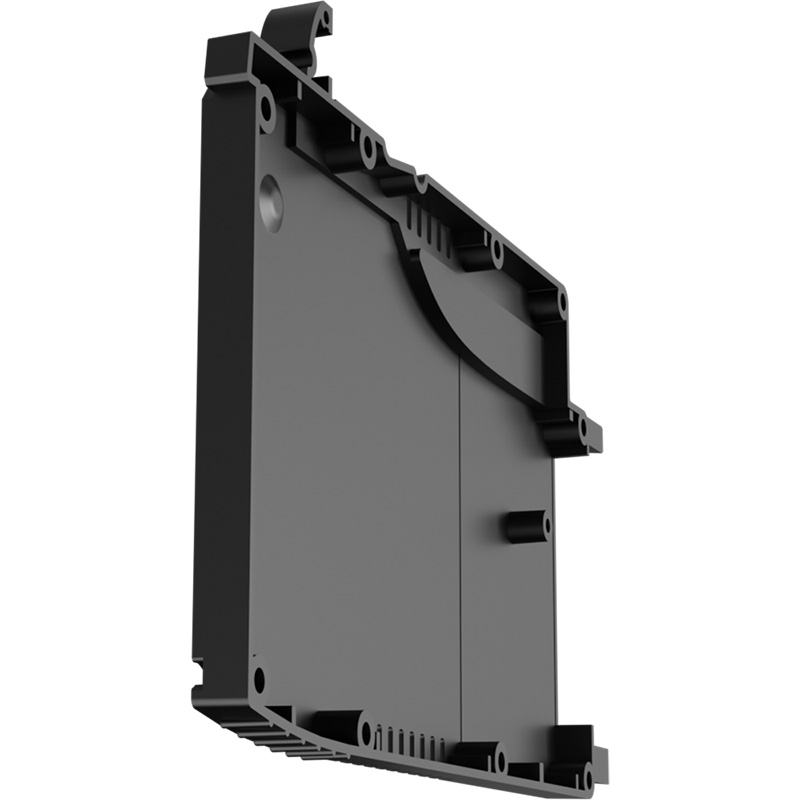

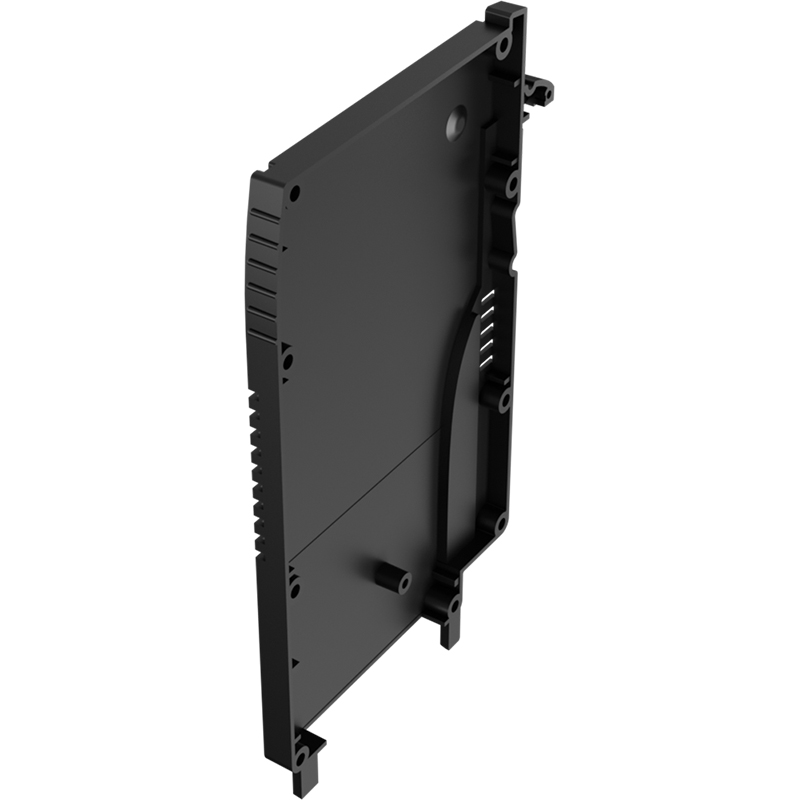

P17111112C
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

3D Drawing

Download / Request Log in or register to download our 3D models

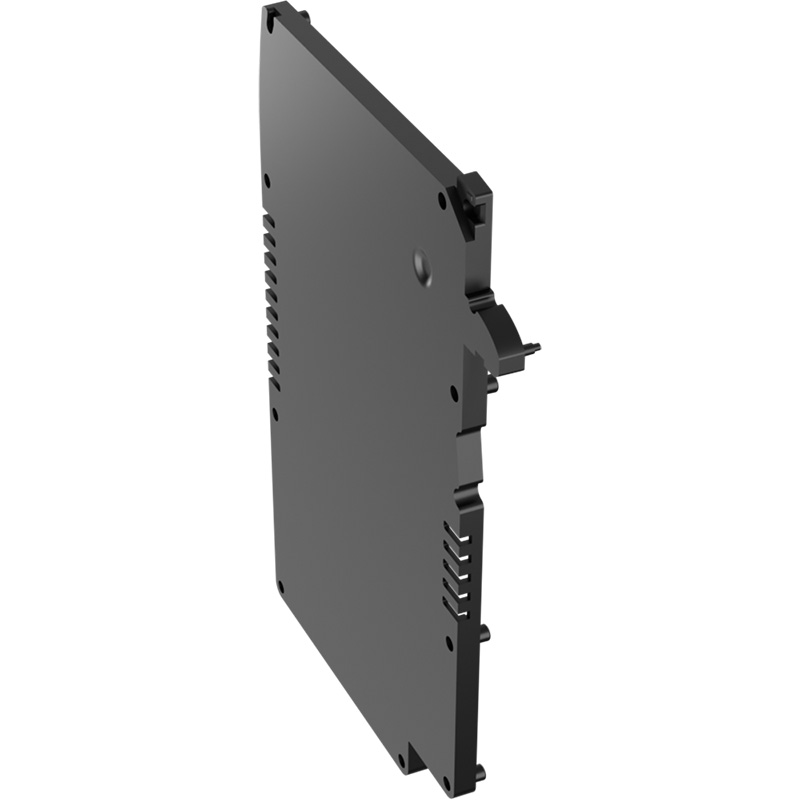

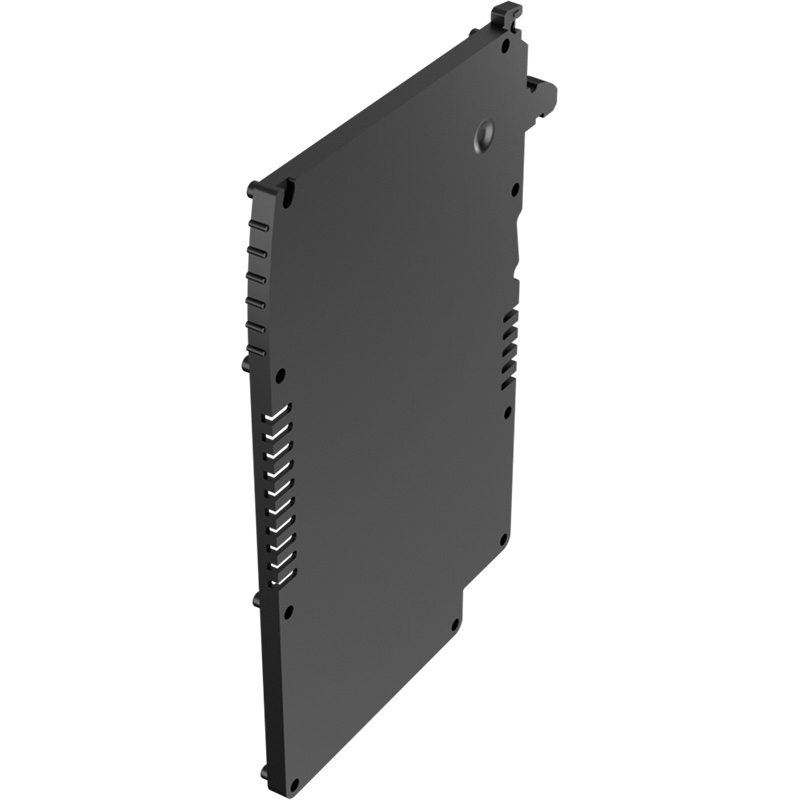

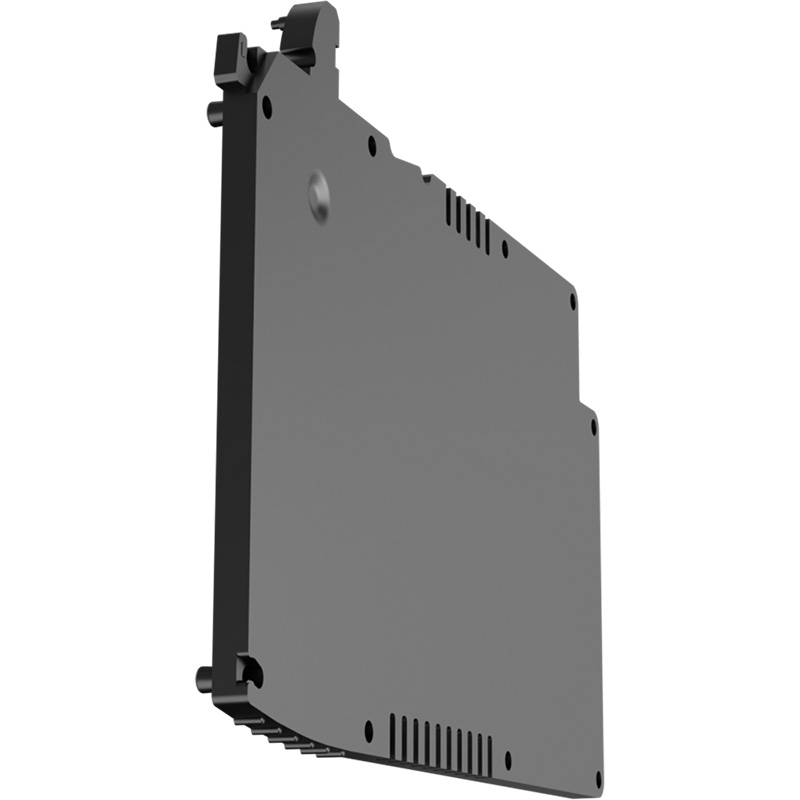

P17911112B
Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models

B - Kit enclosure holder

Colour
P17001111S

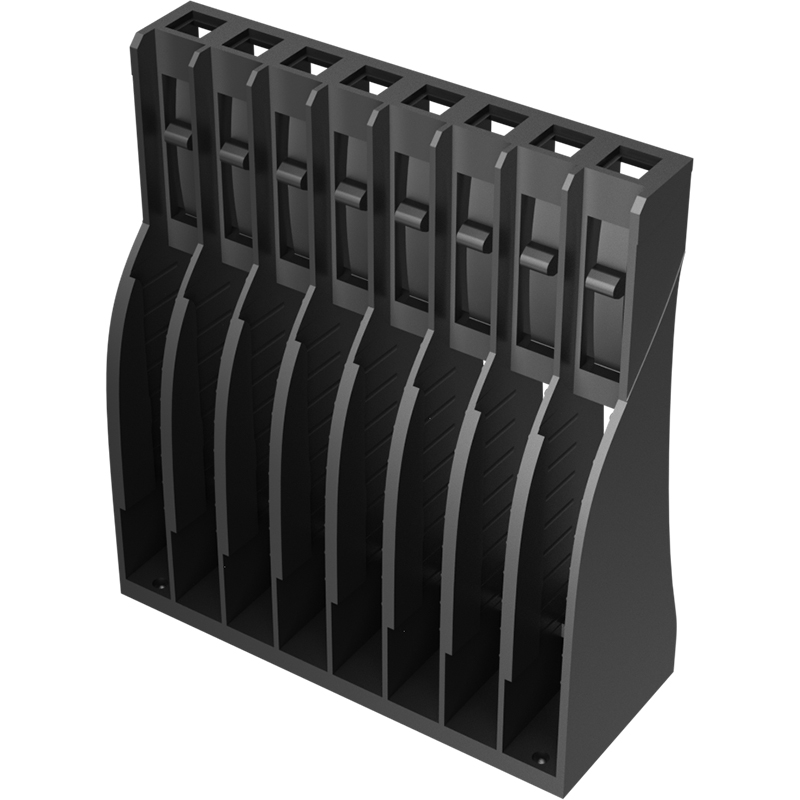

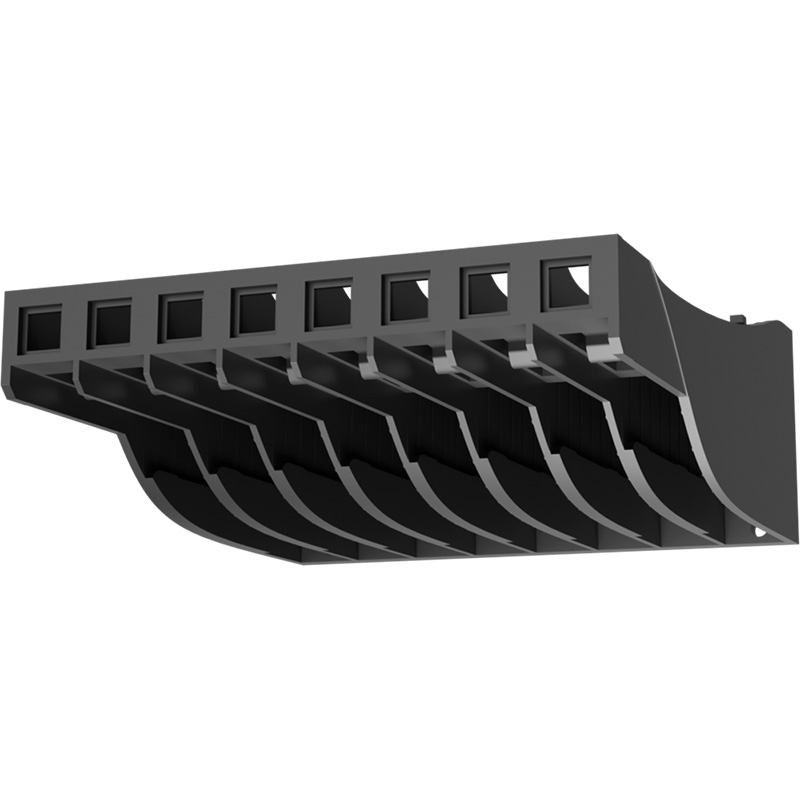

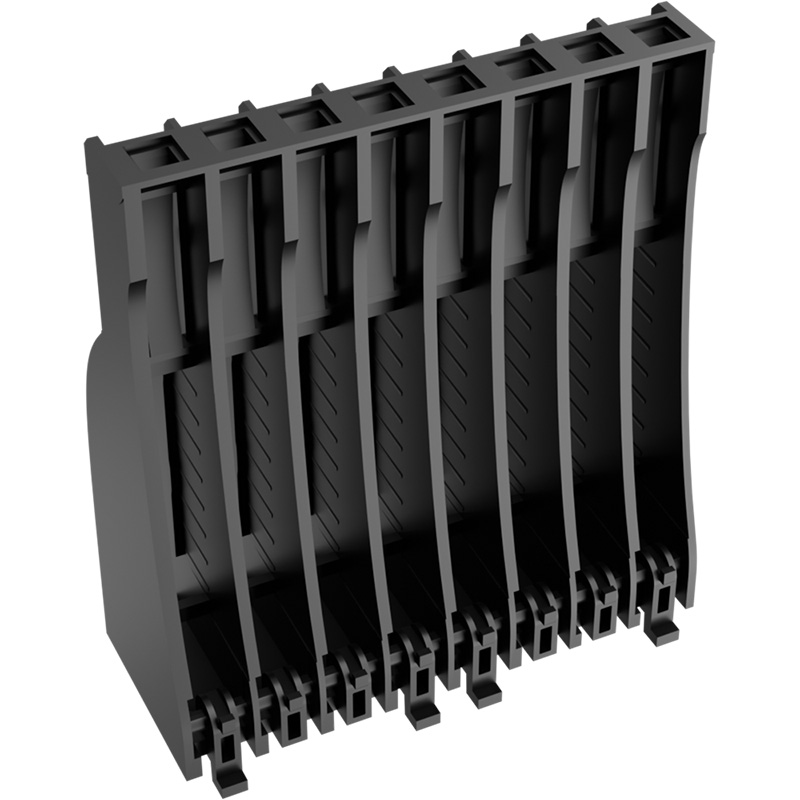

CARTRIDGES 8 SLOTS HOLDER FOR LATUSBOX
Colour: Black Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models
P17001114L

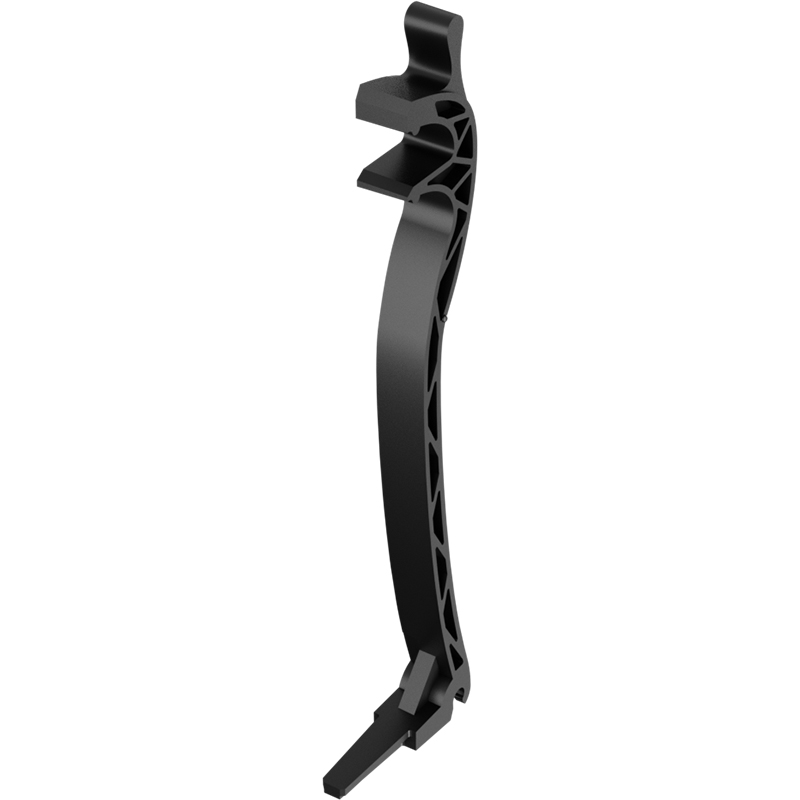

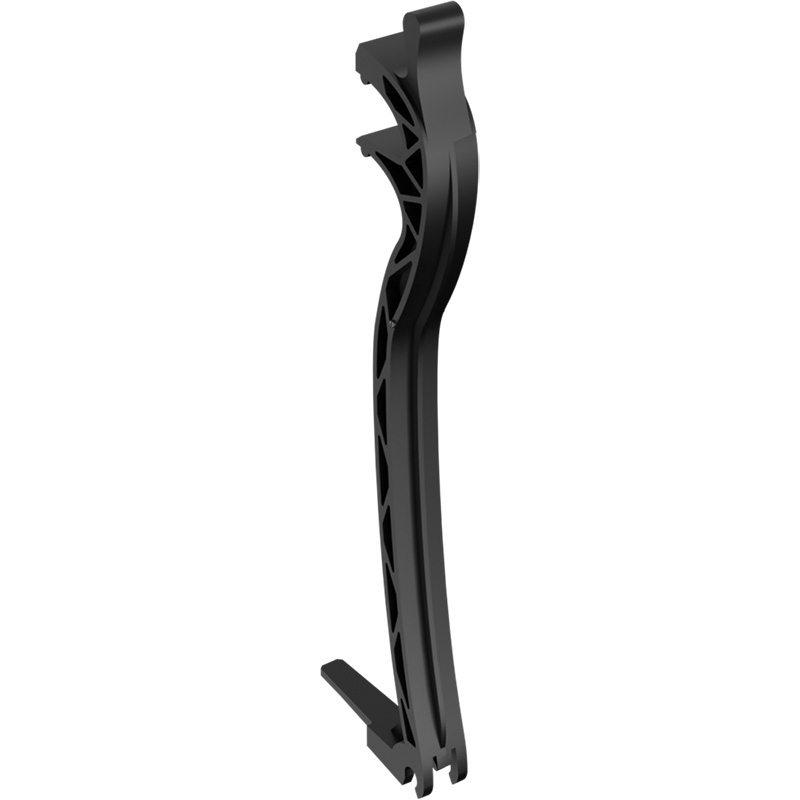

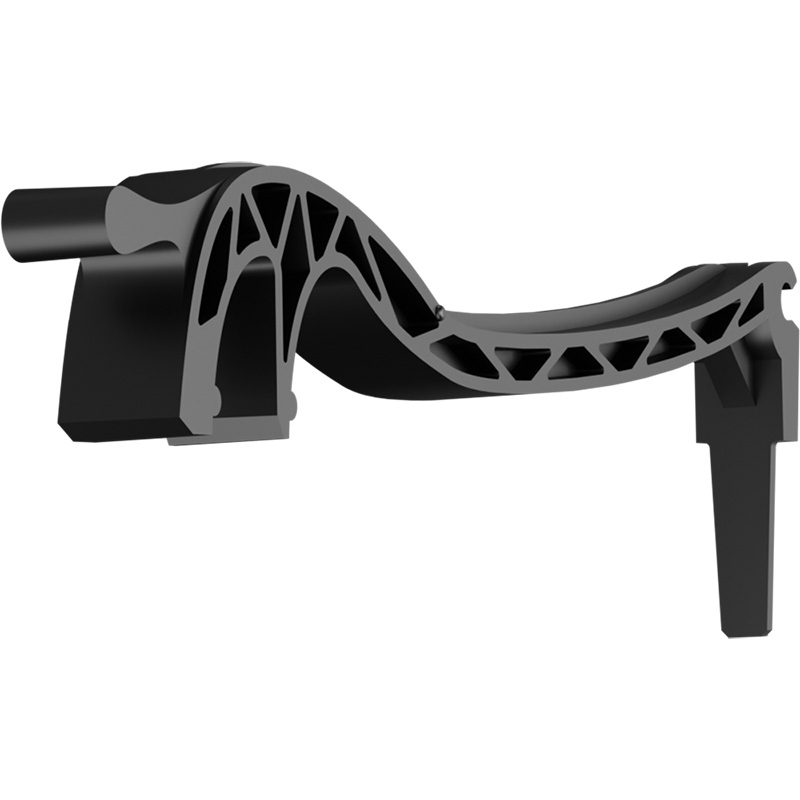

EJECTOR LEVER FOR CARTRIDGE FOR LATUSBOX BLACK
Colour: Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models
P17001115L

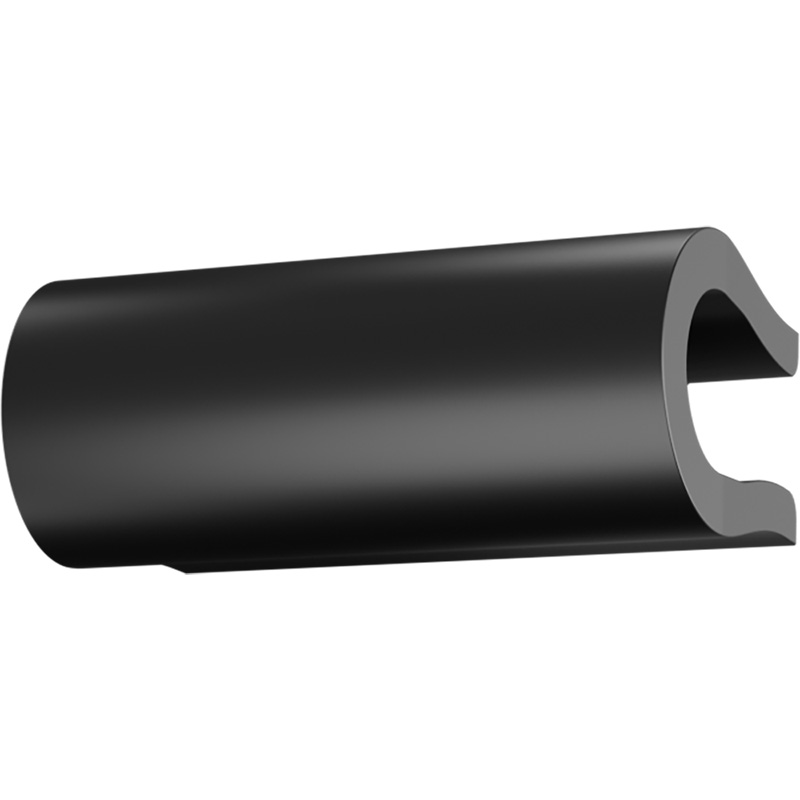

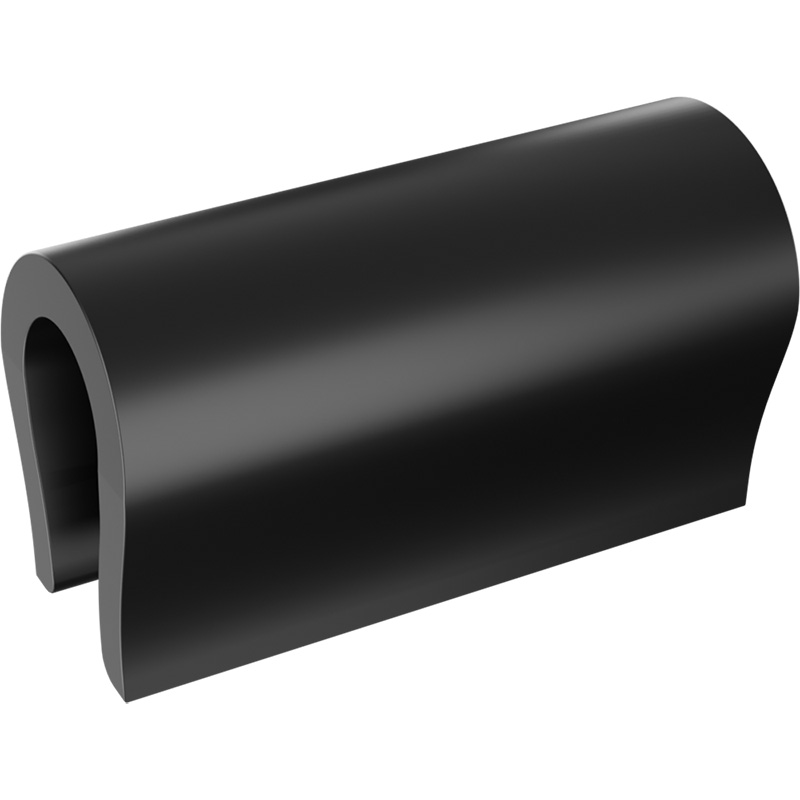

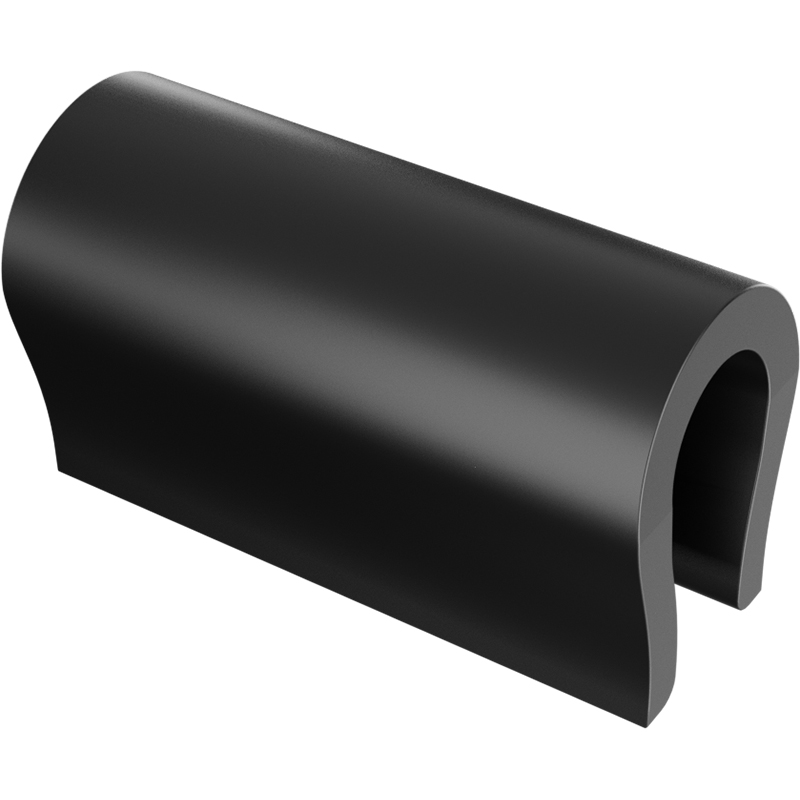

LATUSBOX DOUBLE LEVER ACCESSORY BLACK
Colour: Details and order Please login or register to view available prices and quantities
Drawings / Samples
Download
Drawing

Samples

Request (Free) Log in or register to download our Samples

3D Drawing

Download / Request Log in or register to download our 3D models

Description:

1) Front Panel

2) Latusbox Base 9,8 mm

3) Latusbox Lid 9,8 mm

4) Latusbox Base 19,8, mm

5) Polarizers

6) Latusbox Lever

7) Double lever accessory

8) Modular Seat Latusbox

9) Support Profile

10) Support Side Closures

11) Screw
